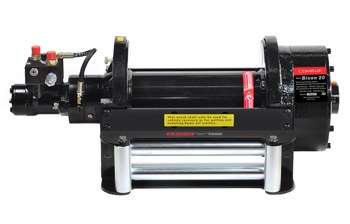

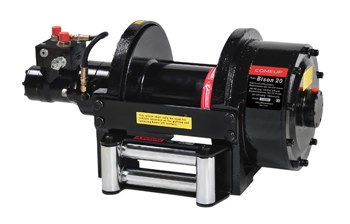

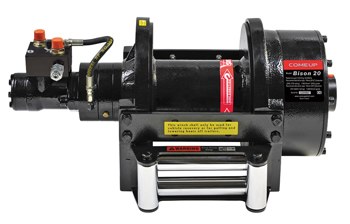

Description
Specification/Part Numbers
- Part number: PN 682030 (Std. drum) / PN 682169 (Long drum)
- Rated line pull: 9,070 kg / 20,000 lb (SAE J706 & EN 14492-1 rating)
- Line speed (at 1st layer of rope) : 7.1 mpm at 60 l/min (23 fpm at 15.9 g/min)
- Operation pressure: 175 bar / 2,540 psi
- Max oil flow: 60 l/min (15.9 g/min)
- Hydraulic motor: 155.7 cm3/rev (9.5 in3/rev)
- Gear ratio: 2-stage planetary gear 30:1
- Winch construction: Cast housings with steel drum
- Clutch (Freespooling): Output shaft disengaged
- Brake: Multi-Disc Brake (MDB) patented and counterbalance valve supplied
- Rotation of winch: Wire rope shall be under-wound orientation only
- Drum barrel diameter: 146 mm (5.8″)
- Drum flange diameter: 314 mm (12.4”)
- Distance between flanges:
203 mm (8″) – Std. drum
355.6 mm (14″) – Long drum - Mounting bolts pattern:
190.5 x 304.8 mm (7.5” x 12”) ; 266.7 x 304.8 mm (10.5” x 12”) – Std. drum
190.5 x 457.2 mm (7.5” x 18”) ; 266.7 x 457.2 mmc (10.5” x 18”) – Long drum - Wire rope recommended:
14 mm x 43 m (9/16” x 141’) – Std. drum
14 mm x 80 m (9/16” x 262’ ) – Long drum
1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 137 kN (30,742 lbf) required for SAE J706 ratings
16 mm x 30 m (5/8” x 98’) – Std. drum
16 mm x 55 m (5/8” x 180’ ) – Long drum
1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 179 kN (40,167 lbf) required for EN 14492-1 ratings - Winch weight:
135 kg / 298 lb – Std. drum
150 kg / 331 lb – Long drum - Gross weight:
165 kg / 364 lb – Std drum
195 kg / 430 lb – Long drum - Box dimension, (L x D x H) :
870 x 500 x 510 mm (34.3″ x 19.7″ x 20.1″) – Std. drum
1,025 x 500 x 510 mm (40.4″ x 19.7″ x 20.1″) – Long drum
Performance Data:
| Line Pull and Rope Capacity | Line Speed | |||||
|
Layer of Wire Rope
|
Pull by layer,
kg / lb |
Total Rope on the Drum, m / ft
|
at 60 l/min (15.9 g/min), mpm / fpm |
|||
|
Std. drum
|
Long drum
|
|||||
|
14 mm rope
|
16 mm rope
|
14 mm rope
|
16 mm rope | |||
|
1st
|
9,070 / 20,000
|
7 / 23
|
6 / 20
|
12 / 39 |
11 / 36
|
7.1 / 23 |
|
2nd
|
7,719 / 17,017
|
15 / 49
|
13 / 43
|
27 / 89 |
24 / 79
|
8.3 / 27 |
|
3rd
|
6,719 / 14,813
|
24 / 79
|
21 / 69
|
43 / 141 |
39 / 128
|
9.5 / 31 |
|
4th
|
5,948 / 13,113
|
34 / 112
|
30 / 98
|
62 / 203 |
55 / 180
|
10.8 / 35 |
|
5th
|
5,335 / 11,762
|
43 / 141
|
–
|
80 / 262 |
–
|
12 / 39 |
* Remark: COMEUP Bison series hydraulic winch also provides low-pressure motor, please contact your sales representative now for further information.
Warning
* The winch is not intended to be used in any manner for the movement or lifting of personnel.
* The rated line pull shown is based on the first layer of rope on the drum.
* The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.
Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.
Hydraulic System:
Dimension, mm/in:
Accessory:
| Standard Accessories |
|
