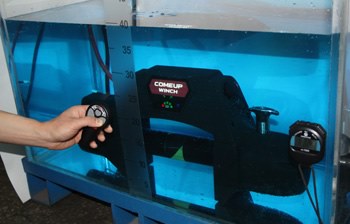

Description
- Part number: PN 295880
- Rated line pull: 4,309 kg / 9,500 lb single line
- Motor: 3,730 w / 5.0 hp 12V series wound
- Gear ratio: 3-stage planetary 159:1
- Clutch (freespooling): Rotating ring gear
- Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
- Winch construction: Aluminum die cast housings with steel drum
- Drum size: 63.5 x 227 x 273 mm (2.5” x 8.9” x 10.7″)
- Control: Waterproof remote with thermometric indicator LED w/ 5 m (17′) cord
- Rope type: Synthetic rope
- Rope size: 10 mm x 30.5 m (3/8” x 100’)
- Mounting bolt pattern: 254 x 114 mm (10” x 4.5”)
- Mounting : Foot forward or foot down mounting workable
- Finish : Matte black powder-coated
- Winch weight (including rope) : 36.2 kg / 79.8 lb
- Gross weight : 40.8 kg / 90 lb
- Box dimension, (L x D x H) : 682 x 209 x 430 mm (26.9″ x 8.2″ x 16.9″)
Line Speed and Amp. Draw (1st layer of rope on the drum):
|
Line Pull,
kg / lb |
Line Speed,
mpm / fpm |
Amp, Draw, A
|
|
12V
|
||
|
No load
|
14.8 / 48.6
|
60
|
|
907 / 2,000
|
4.8 / 15.7
|
115
|
|
1,814 / 4,000
|
3.6 / 11.8
|
210
|
|
2,722 / 6,000
|
2.8 / 9.2
|
245
|
|
3,629 / 8,000
|
2.3 / 7.6
|
280
|
|
4,309 / 9,500
|
2.2 / 7.2
|
380
|
Line Pull and Rope Capacity:
|
Layer of Rope
|
Pull by layer, kg / lb
|
Total Rope on the Drum, m / ft
|
|
1st
|
4,309 / 9,500
|
5.1 / 16.7
|
|
2nd
|
3,472 / 7,655
|
11.7 / 38.4
|
|
3rd
|
2,908 / 6,410
|
19.7 / 64.6
|
|
4th
|
2,501 / 5,514
|
30.5 / 100
|
Warning
Winches are not to be used for the lifting or moving of persons.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 10 wraps from the drum.
Warranty
Each new winch is guaranteed against defects in workmanship and material defects for a stipulate period from date of purchase.
*Automotive Winch: Limited lifetime warranty for mechanical components,
New Seal Gen2 Series winch a three (3) years warranty for electrical components,
WIRE/SYNTHETIC ROPES ARE NOT INCLUDED UNDER WARRANTY.
Each new winch is guaranteed against defects in workmanship and material defects for a stipulate period from date of purchase.
*Automotive Winch: Limited lifetime warranty for mechanical components,
New Seal Gen2 Series winch a three (3) years warranty for electrical components,
WIRE/SYNTHETIC ROPES ARE NOT INCLUDED UNDER WARRANTY.
Dimension, mm/in:
- 16 equally positioned pin holes ensure seamless clutch transmission and make it easily rotate by 22.5° increments.
Accessories:
| Standard Accessories | Option Accessories |
|
|
