Description
Specification/Part Numbers
|

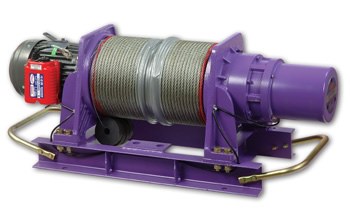

Model number
|
Three phase
|
CEP-2000-
 M |
||||
|
Double fall load
|
kg
|
2,000
|
||||
|
Double fall speed
|
M/min
|
5
|
||||
|
Motor
|
kw x P
|
2.3 x 4
|
||||
|
Power Source
|
3ø 50Hz
|
380/400/415V
|
||||
|
Lifting height
|
M
|
5
|
8 | 14 | ||
|
Wire rope
|
ø mm x M
|
10 x 16
|
10 x 22 | 10 x 34 | ||
|
Dimension
|
A mm
|
427
|
522 | 812 | ||
|
B mm
|
600
|
700 |
850
|
|||
|
C mm
|
1170
|
1265 |
1405
|
|||
|
Net weight
|
kg
|
190
|
215 | 265 | ||
|
Gross weight
|
kg
|
240
|
265 | 315 | ||
Means Lifting Height
Note:
* The winch is not intended to be used in any manner for the movement or lifting of personnel.
* 60 Hz motor is available upon request.
* Use a tackle block for double line operation, to increase the rated load of the winch by approximately 85%.
Dimension:
